Minelab X-Terra Voyager - Tactical Edition
New from Minelab, the X-Terra Voyager Tactical Edition. A light-weight, simple to use coin & treasure detector, with pro features, but without the pro price tag, all packaged in a complete metal detecting kit with all you need to get started unearthing hidden treasures.
The X-Terra Voyager boasts an advanced specification normally found in higher end metal detectors, while maintaining a simplicity of use that a novice can handle.
Key Features
- Pre-Set and Custom Search Modes
- Choose from: All Metal, when you don't want to miss anything.
Jewellery, a search more tailored to identify precious items such as rings, bracelets and necklaces.
Custom, Set your own discrimination pattern, your way, with 7 target groups.
Learn, When you only want to find a specific type of target, train the detector to identify what you are looking for. - Pin-point mode
- When you identify a target, locate it quickly and accurately with the pin-point mode and minimise the hole size.
- Target ID Digital Display
- Identify the targets you want to dig and avoid trash by observing the target ID display on a 0 to 99 scale.
- Target Tones
- ID targets without having to look with varying pitch target tones. Low: ferrous, Mid: low conductors, High: high conductors.
- ID Reference Display
- Want to know what the different IDs could mean? The ID reference chart shows the type of targets typical of each of the 7 ID ranges.
- Depth Gauge
- Estimate how far you are likely to dig with a 5 level depth indicator.
- Sensitivity Adjust
- Adjust sensitivity to suit the terrain you are searching and avoid false signals in challenging ground types.
- Volume Control
- Adjust the volume level to your preference.
- Waterproof Coil
- Search for lost treasure in streams and surf with a waterproof search coil.
- Large LCD Display
- See all your controls and target information on the 4 x 2 Inch LCD display with back-lighting.

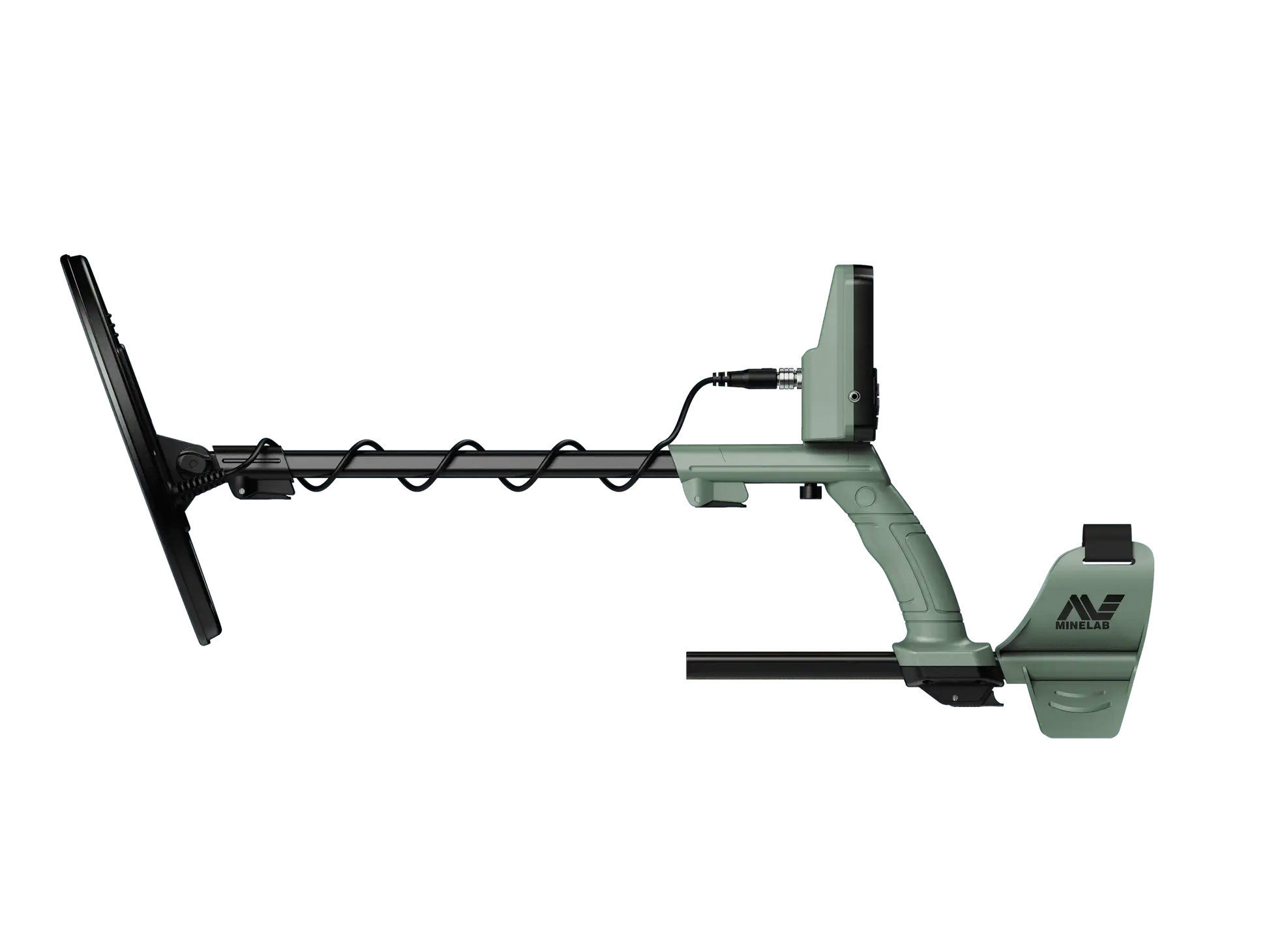

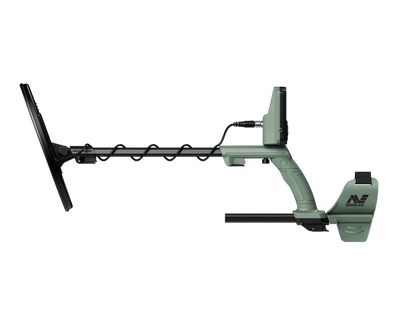

- Light and Collapsible
- The machine is light enough for a child to use, with adjustable stem for use by an adult or child, and packed away to a compact form.

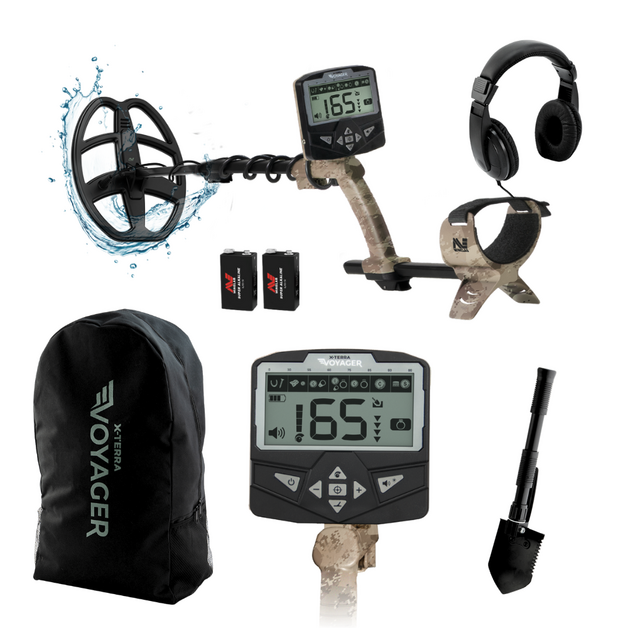

- Full Metal Detecting Kit

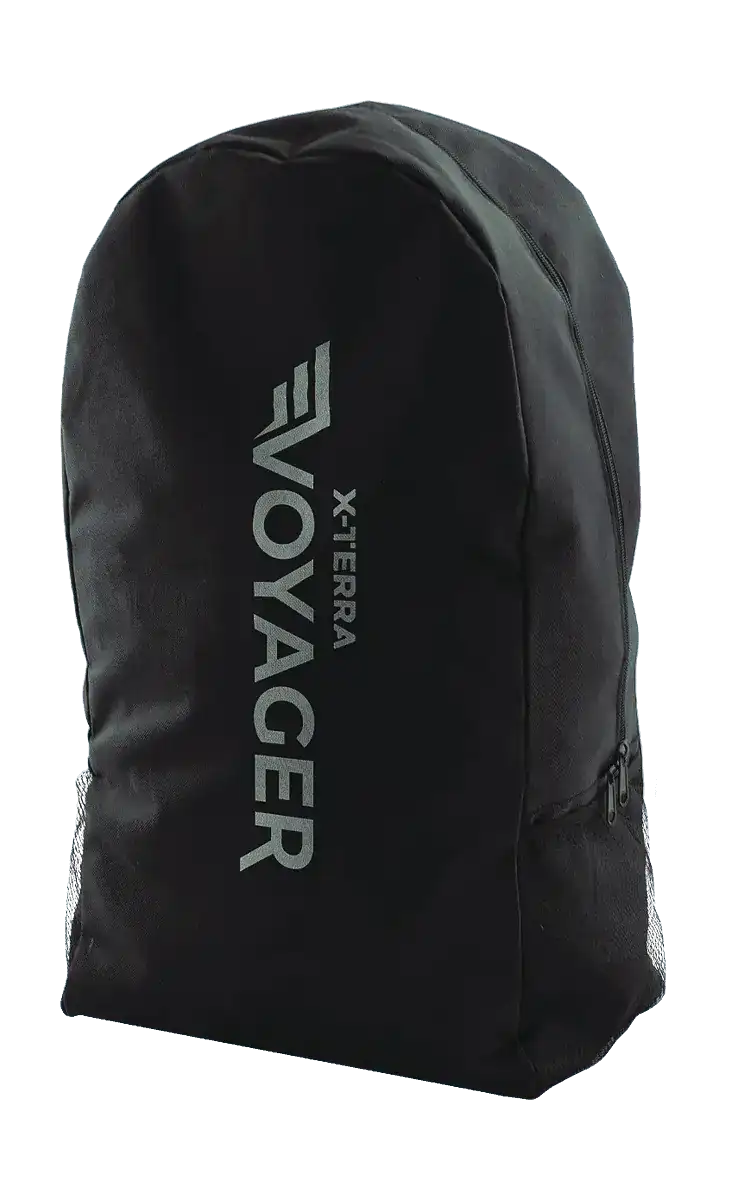

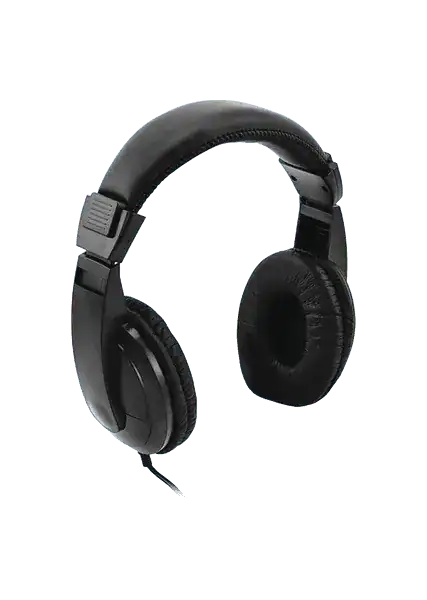

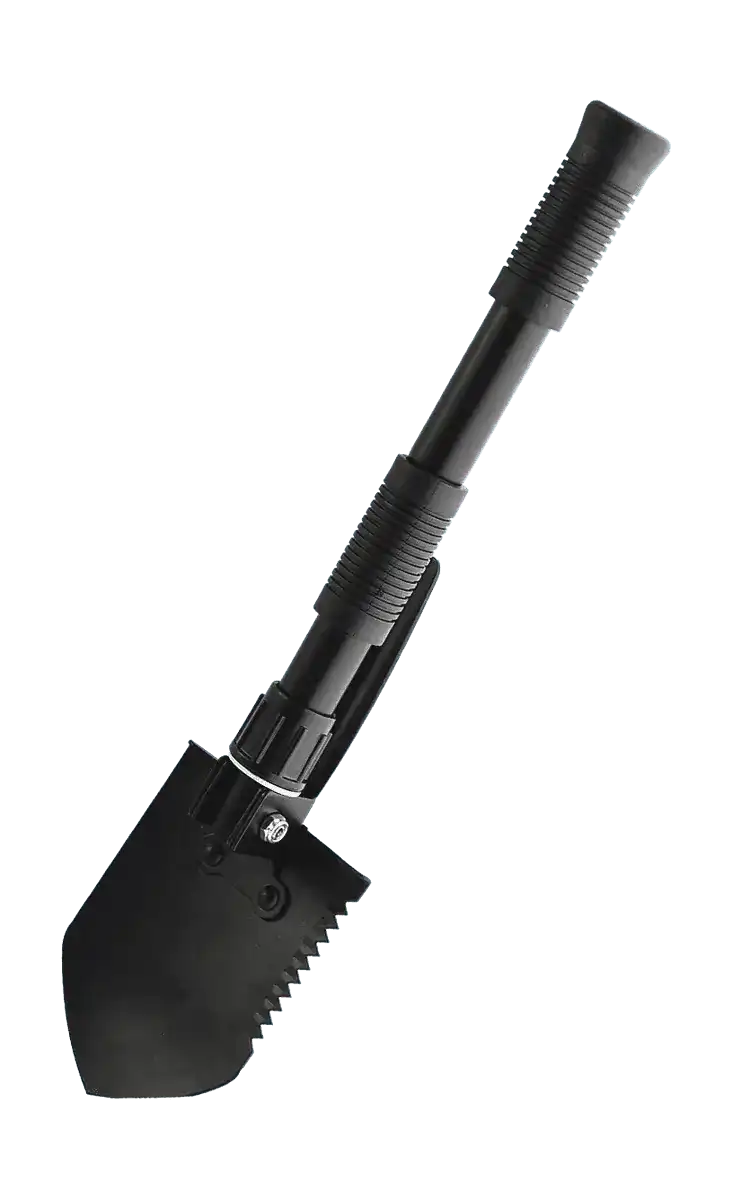

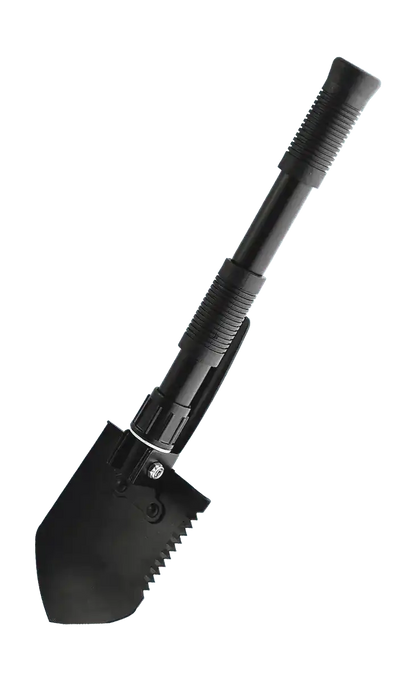

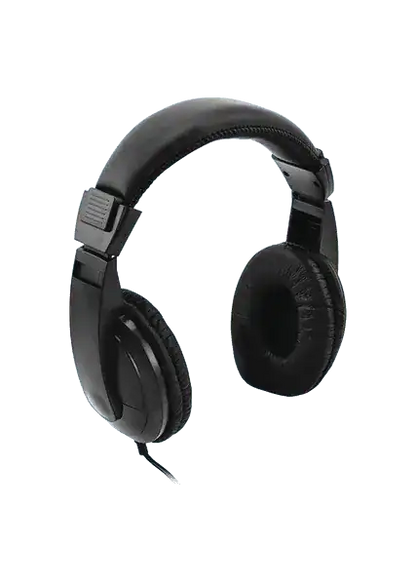

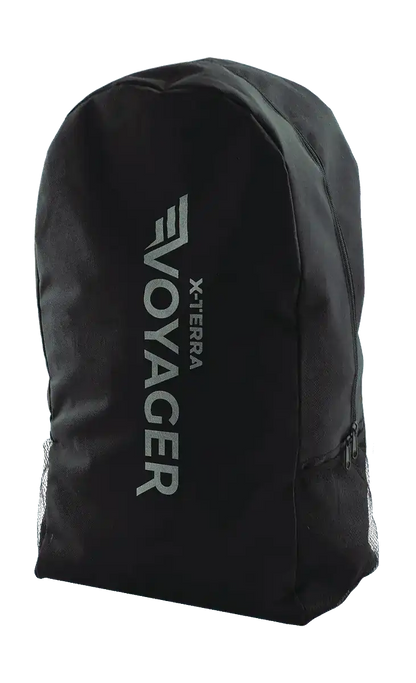

- Not just the detector, but headphones, batteries, digging tool and back pack are included, so you can start right away without having to additional accessories.
| Audio | |
|---|---|
| Audio Output | Built in Speaker, 3.5mm Headphone Socket |
| Headphones | Included |
| Target Tones | 3 [Low, Mid, High] |
| Volume Levels | 3 |
| Display | |
| Back-Light | Yes |
| Depth Indicator | 5 Levels |
| Display Type | LCD |
| Physical Properties | |
| Coil Size | 11 x 8.5 Inch |
| Max Stem Length | 55 Inch, 140cm |
| Min Collapsed Length | 28.3 Inch, 72cm |
| Waterproofing | Coil Only |
| Power | |

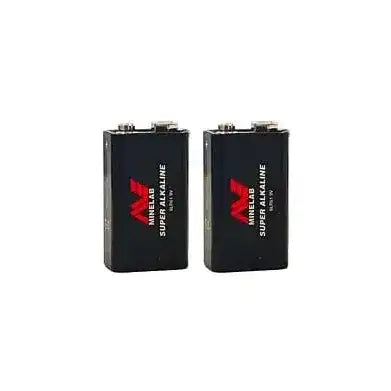

| Power Source | 2 x 9 Volt Batteries (Included) |
| Technology | |
| Coil Configuration | Double D |
| Discrimination Segments | 7 |
| Operating Frequency | 5.82kHz |
| Operating Principle | VLF (Very Low Frequency) |
| Sensitivity Levels | 5 |
| User Features | |
| Pin-Point Mode | Yes |
| Preset Search Modes | 4: All Metal, Jewellery, Custom, Learn |
| Target ID Range | 0 to 99 |
FAQs
CAN WE USE DIFFERENT X-TERRA COILS ON THE X-TERRA VOYAGER?
No, the X-TERRA VOYAGER uses different technology to other X-TERRA detectors. You can only use the coil that is supplied in the box with the detector.
WHAT ACCESSORY COILS ARE AVAILABLE?
The X-TERRA VOYAGER does not have any accessory coils currently available.
HOW DEEP DOES THE DEPTH GAUGE INDICATE?
The depth gauge will provide an approximate indication of depth and should only be used as a guide as large or small metals will cause the gauge to become inaccurate. A coin sized object will provide the below estimated depths.
1 arrow = 1” (25mm)
2 arrows = 3” (75mm)
3 arrows = 5” (125mm)
4 arrows = 6” (150mm)
5 arrows = >6” (>150mm).
CAN I USE WIRELESS HEADPHONES WITH X-TERRA VOYAGER?
The X-TERRA VOYAGER does not have wireless capability. You can use a Bluetooth wireless transmit module with the detector. These are not available from Minelab and will have to be purchase separately.
WHAT ARE THE DIFFERENCES BETWEEN THE DETECT MODE SEARCH PROFILES?
All Metal allows the detector to detect all metal types. When in all metal mode there will be no discrimination of any metal types.
Custom provides users the ability to discriminate any of the target group icons at the top of the screen. You simply navigate through to the desired target group and the icon will flash for a few seconds and then it will disappear. All target ID’s in this target group will now be discriminated out.
To detect the discriminated target group simply navigate away from the target group and then navigate back to the desired target group. The icon will flash for a few seconds and then appear. All target ID’s in the target group will now detect again.
Jewellery provides discrimination pattern that ignores most iron/ferrous junk. You will also find coins, relics and other non-ferrous metals. This mode is good for trashy environments.
Learn allows users to detect 1 specific target group. You simply need to wave the desired metal over the detection coil, the detector will then learn this target ID and accept only targets ID’s within that target group.
HOW LONG DOES THE BATTERY LAST?
Typical runtime, when using new high quality 9-volt alkaline batteries is 20 hours.
HOW CAN I MAXIMISE MY BATTERY LIFE?
Remove the batteries after use. This will help the batteries retain any internal charge and avoid leaking. Leaking batteries can also damage the internal electronics of your detector. This type of damage is not covered under warranty.
Avoid rapid extreme temperature swings.
When detecting avoid using the backlight. When the backlight is not switched on this can help maximise battery life.
Use 3.5mm (1/8”) headphones. Using the headphones will use less battery when compared to using the detector’s loudspeaker.
SHOULD I WASH MY X-TERRA VOYAGER DETECTOR AFTER USING AT THE BEACH?
It is good practice to clean your detector after each use. Only fresh water should be used when cleaning. Never use abrasives or solvents to clean the detector. The detection coil is waterproof and can be washed with the hose. The Screen pod should only be carefully wiped with a clean damp cloth to avoid any water or moisture ingress.
DO I NEED TO PUT GREASE ON THE DETECTOR BEFORE USING IN WATER?
No. It is not necessary to lubricate or grease any part of the detector. Using any petroleum-based grease can damage the plastics and void the warranty.
